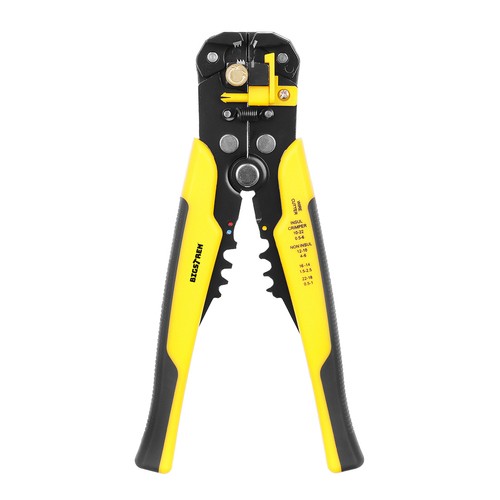

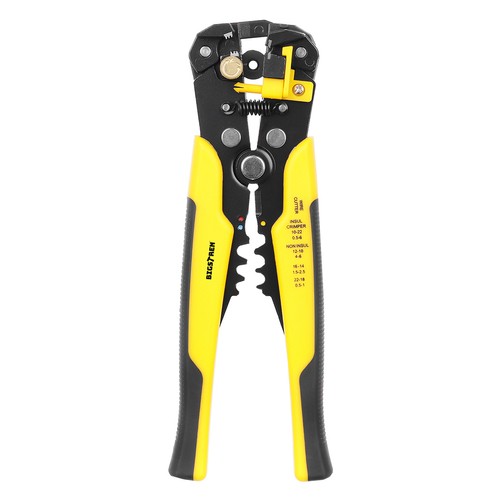

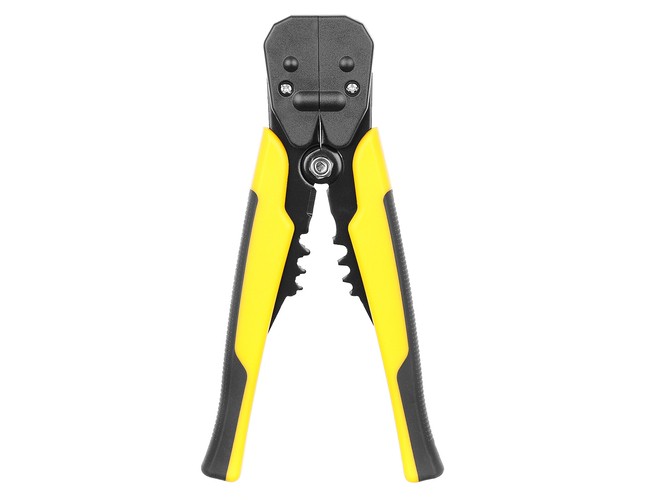

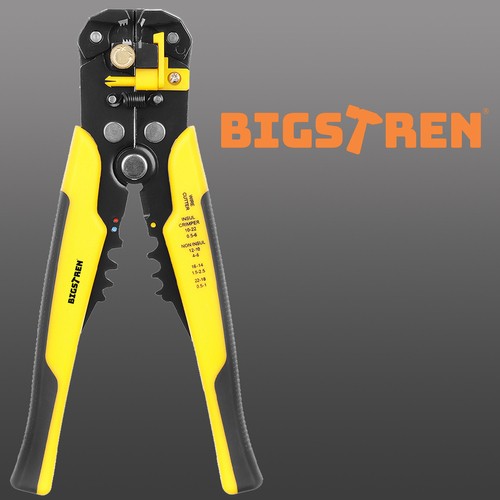

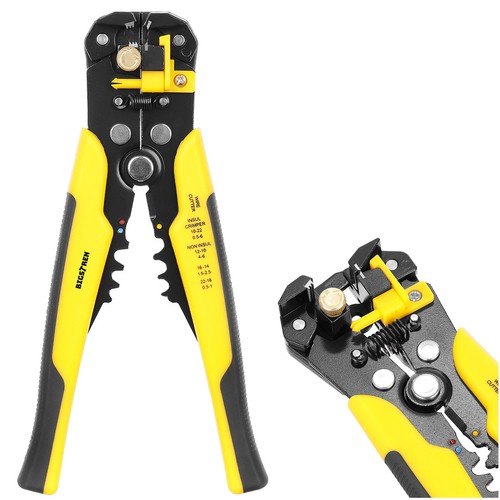

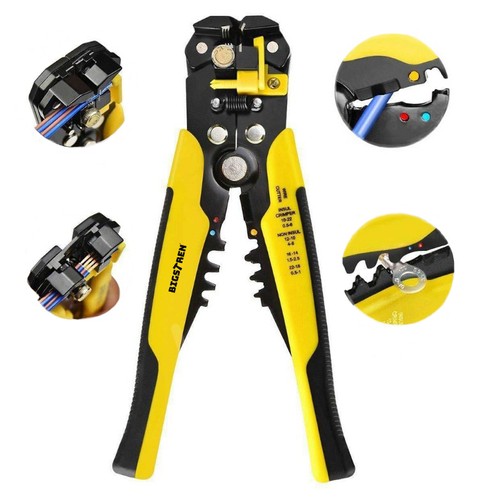

AUTOMATIC INSULATION STRIPPER WITH CUTTER AND CRIMP + PRESSURE FORCE REGULATOR AND LIMITER

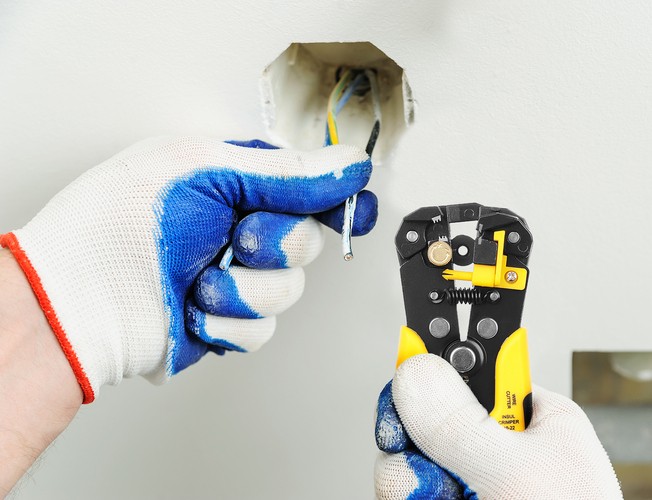

• AUTOMATIC INSULATION STRIPPER – This practical tool will allow you to quickly and precisely remove insulation from single-core or multi-core cables. To remove insulation, insert the wire into the jaws so that it lies evenly against the tool – then squeeze the handle.

• WIRE CUTTER – Another useful function of a wire stripper is cutting wires. The 11 mm blade is located between the tool's handles. To cut a wire of similar or smaller width, simply place it between the blades and squeeze firmly.

• CONNECTOR TERMINAL CRIMPING TOOL – using the device we can also crimp insulated and non-insulating connector terminals on wires with a cross-section of 1.5 mm2 to 6 mm2. To perform this operation, you must insert a wire with an insulated end and insert it into the connector terminal, then place it in the place intended for crimping (INSUL CRIMPER) and tighten the handle firmly.

• POWER ADJUSTMENT + LIMITER – the device has a small knob located under the jaws. You can use it to adjust the pressure on the insulation, so you don't have to worry about damaging the wire while working. Additionally, the stripper has an adjustable length limiter.

• SPECIFICATION – manufacturer: Iso Trade; brand: Bigstren; color: yellow-black; material: zinc alloy, PP, TPR, iron; anti-slip pad: YES; mechanism: frontal, automatic; stripping insulation from cables with a diameter of: 0.2 – 6 mm2 (10 – 24 AWG); crimping insulated connector terminals: 0.5 – 6 mm 2 (22-10 AWG) and non-insulated: 4 – 6 mm2 (12-10 AWG), 1.5 – 2.5 mm2 (16-14 AWG), 05 – 1mm2 (22-18 AWG); dimensions (l/w/h): 20/10/3 cm; weight: 0.35 kg; weight in packaging: 0.4 kg.

SPECIFICATION

• manufacturer: Iso Trade
• brand: Bigstreen
• color: yellow-black;
• functions: stripping, crimping, cutting, adjustment knob, adjustable length limiter;
• material: zinc alloy, PP, TPR, iron
• anti-slip pad: YES;
• mechanism: frontal, automatic;
• stripping insulation from cables with a diameter of: 0.2 – 6 mm 2 (10 – 24 AWG); crimping insulated connector terminals: 0.5 – 6 mm 2 (22-10 AWG) and non-insulated: 4 – 6 mm2 (12-10 AWG), 1.5 – 2.5 mm2 (16-14 AWG), 05 – 1mm2 (22-18 AWG);

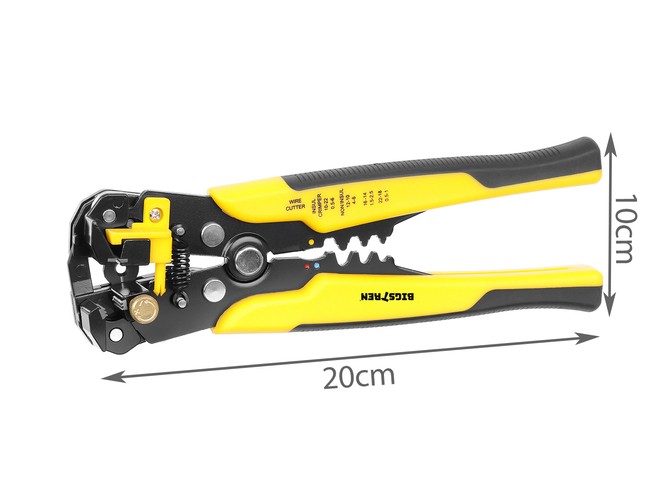

• dimensions (length/width/height): 20/10/3 cm;
• weight: 0.35 kg;
• package weight: 0.4 kg.
